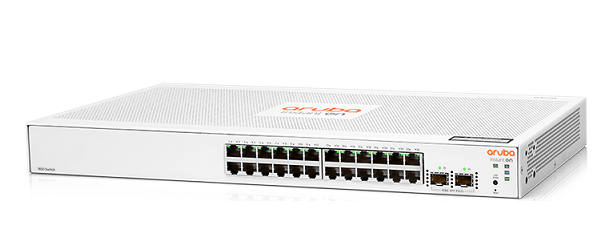

JL812A Aruba Instant On 1830 24G 2SFP Switch

Thông số kỹ thuật Switch Aruba JL812A

Datasheet JL812A
I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP 1GbE ports

Physical Characteristics
Dimensions 215.9(d) x 443.0(w) x 43.9(h) mm
Weight 5.50 lb (2.49 kg)
Memory and Flash ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB
Throughput (Mpps) 38.68 Mpps
Switching capacity 52 Gbps
100 Mb latency < 5.2 uSec
1000 Mb latency < 2.8 uSec
Throughput (Mpps) 38.68 Mpps
Capacity 52 Gbps
MAC address table size (# of entries) 16,000 entries
Reliability MTBF (years) 203.6
Operating temperature 32°F to 104°F (0°C to 40°C)
Operating relative humidity 15% to 95% @ 104°F (40°C)
Nonoperating/ storage temperature -40°F to 158°F (-40°C to 70°C)
Nonoperating/ storage relative humidity 15% to 95% @ 140°F (60°C)
Altitude up to 10,000 ft (3 km)
Idle Fanless
100% traffic Fanless
100% traffic / 0% PoE Fanless
100% traffic / 50% PoE Fanless
100% traffic / 100% PoE Fanless
Electrical Characteristics
Frequency 50Hz/60Hz
AC voltage 100-127VAC / 200- 240VAC
Current 1.0A/0.5A
Maximum power rating 100-127V: 86.07W 200-220V: 83.67W
Idle power 100-127V: 8.3W 200-220V: 8.2W
PoE power
Power supply Internal power supply
Safety EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

Emissions EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A


Generic EN 55035, CISPR 35, KN35
EN EN 55035, CISPR 35
ESD EN/IEC 61000
Radiated EN/IEC 61000
EFT/Burst EN/IEC 61000
Surge EN/IEC 61000
Conducted EN/IEC 61000
Power frequency magnetic field EN/IEC 61000
Voltage dips and interruptions EN/IEC 61000-4-11
Harmonics EN/IEC 61000
Flicker EN /IEC 61000-3-3
Device Management Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting positions and supported racking Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down

GIÁ 6.660.000
