Switch R8R49A HPE Auba ION 1430 24G SW

Thông số kỹ thuật

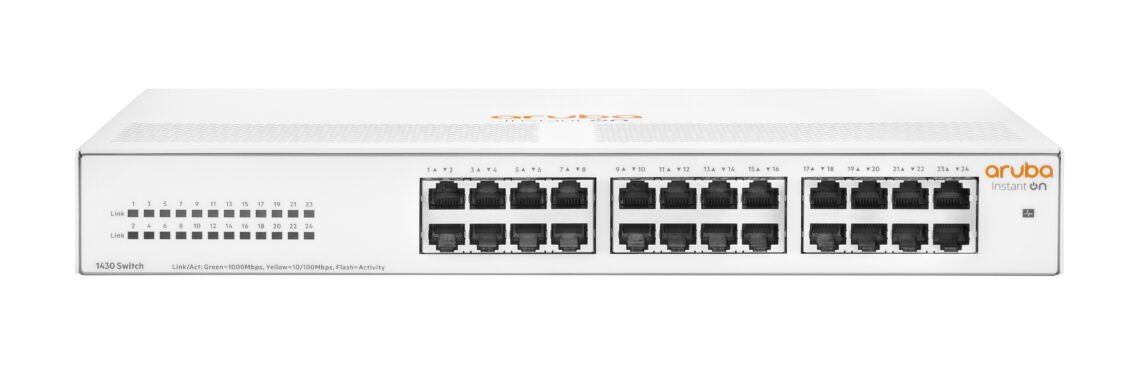

Aruba R8R49A Datasheet
Technical Specifications
I/O ports and slots	24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Physical Characteristics
Dimensions	225(d) x 340(w) x 44(h) mm
Weight	4.20 lb (1.91 kg)
Processor and Memory	128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance
100 Mb latency	< 2.7 µSec
1000 Mb latency	< 1.80 µSec
Throughput (Mpps)	35.71 Mpps
Capacity	48 Gbps
MAC address table size	8192 entries
Reliability MTBF (years)	199.5
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature	-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity	15% to 90% @ 149°F (65°C) non-condensing
Altitude	up to 10,000 ft (3 km)
Acoustics	Fanless
Electrical Characteristics
Frequency	50Hz/60Hz
AC voltage	100-127VAC / 200- 240VAC
Current	0.3A / 0.2A
Maximum power rating	11.7W
Idle power	3.2W
PoE power	–
Power Supply	External Power Adapter
Safety	– EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 – EN/IEC 62368-1, 2nd. & 3rd. Ed. – UL 62368-1, 3rd. Ed. – CAN/CSA C22.2 No. 62368-1, 3rd. Ed. – EN/IEC 60825- 1:2014 Class 1
Emissions	– EN 55032:2015/ CISPR 32, Class B – FCC CFR 47 Part 15: 2018, Class B – CES-003, Class B – VCCI-32, Class B – CNS 13438, Class B – KS C 9832, Class B – AS/NZS CISPR 32, Class B
Immunity	BS/EN 55035, CISPR 35, KS C 9835
Generic	EN 55035, CISPR 35
EN	EN/IEC 61000-4-2
ESD	EN/IEC 61000-4-3
Radiated	EN/IEC 61000-4-4
EFT/Burst	EN/IEC 61000-4-5
Surge	EN/IEC 61000-4-6
Conducted	EN/IEC 61000-4-8
Power frequency magnetic field	EN/IEC 61000-4-11
Voltage dips and interruptions	EN/IEC 61000-3-2
Harmonics	EN /IEC 61000-3-3
Device Management	Unmanaged
Mounting
Mounting positions and supported racking	– Supports table-top mounting – Supports wall-mounting with ports facing either up or down using base surface mounting holes – Supports under-table mounting using base surface mounting holes
